VPSA oxygen generation system
On-site oxygen supply for iron and steel, non-ferrous metallurgy and industrial combustion.
View productON-SITE OXYGEN SYSTEMS
VPSA oxygen
generation.
On-site oxygen supply for iron and steel, non-ferrous metallurgy and industrial combustion.
Discuss your requirementsTHE APPLICATION
Oxygen from air.
Supply at the source.
Vacuum pressure swing adsorption separates oxygen from air using molecular sieve adsorbents. A complete package connects air supply, adsorption, vacuum regeneration and oxygen delivery.
VPSA uses low-pressure adsorption and vacuum regeneration. Multiple beds work in alternating cycles to sustain oxygen production.
THE PROCESS
A coordinated cycle.
Production and regeneration work together to sustain the oxygen supply.
01
Air supply
Filtered ambient air is supplied to the adsorption system.
02
Selective adsorption
Molecular sieves preferentially adsorb nitrogen, enriching the oxygen stream.
03
Vacuum regeneration
A vacuum system regenerates the adsorbent while the beds alternate duties.
04
Buffer & delivery
Oxygen is buffered and delivered at the pressure required by the downstream process.
EQUIPMENT GALLERY
A closer look
at the equipment.
Select an image to open the full view. Use the arrows to browse the gallery.
View image
VPSA oxygen generation
On-site oxygen supply for iron and steel, non-ferrous metallurgy and industrial combustion.
View image
Multi-unit plant layout
Plant layout model showing vessel banks, equipment frames and connected piping.
View image
Radial and axial adsorption beds
Radial and axial bed arrangements with molecular-sieve layers and airflow paths.
View image

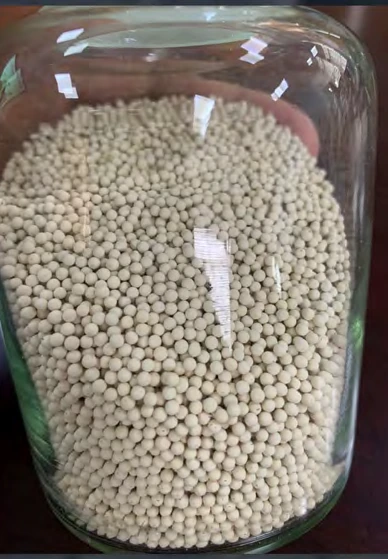

Molecular sieve adsorbent
Granular adsorbent used for oxygen separation.
View image

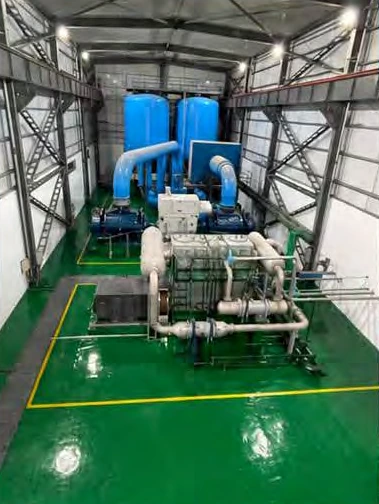

Oxygen plant machinery
A machinery arrangement within an oxygen plant.
View image

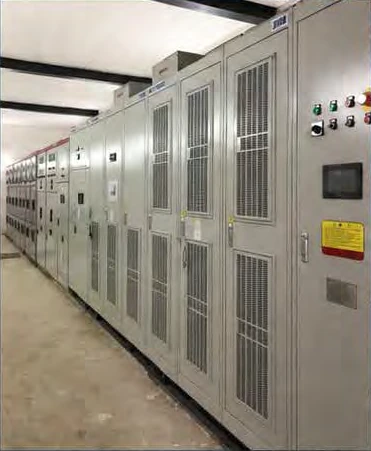

Electrical control cabinets
Electrical cabinets and operator interfaces associated with oxygen plant operation.
View image

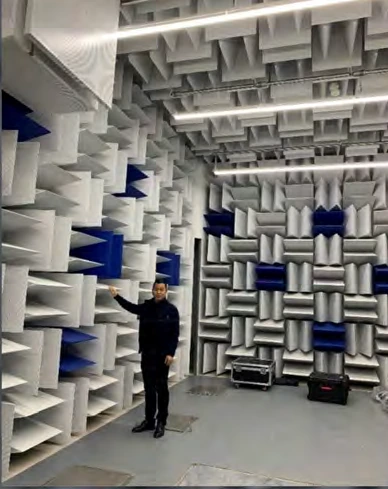

Acoustic treatment
Acoustic baffle arrangement shown in the technical material.
View image

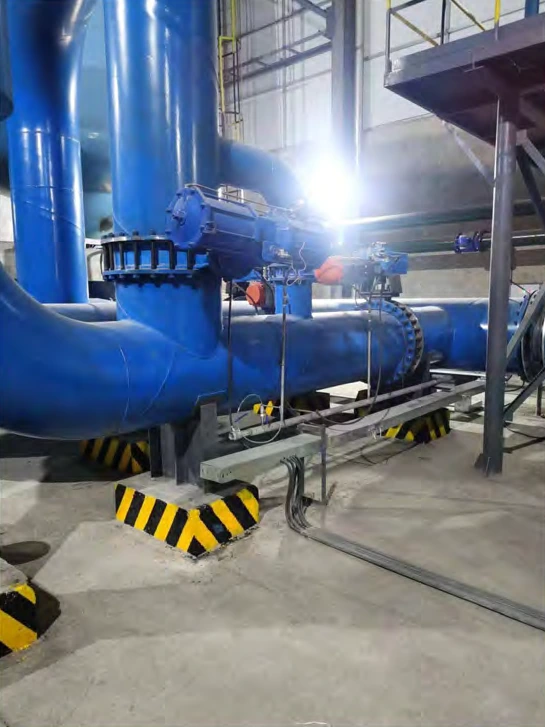

Piping and supports
Process pipework with structural supports and maintenance access.
PRODUCT RANGE
Find the equipment
for your application.
Explore product details and send your operating requirements to our team.
Showing 1 products
No matching products.
Try a different product name or reset the application filter.
TECHNOLOGY & SCOPE
Engineered as a system.
Each package needs to fit the process, site conditions and operating requirements.
01
Adsorption equipment
Axial or radial bed arrangements are selected to suit flow, pressure drop and the project layout.
02
Cycle valves & automation
Frequent-switching valves and coordinated controls manage adsorption, regeneration and oxygen delivery.
03
Plant integration
Blowers, vacuum equipment, piping, cooling, noise control and power interfaces are considered as one package.
04
Downstream oxygen supply
Required product purity, flow and battery-limit pressure define the supply scope, including oxygen boosting where specified.
DEFINE THE DUTY
A useful enquiry
starts here.
Share the operating conditions and project interfaces so the equipment scope can be discussed clearly.
Send your requirements- Required oxygen flow and purity
- Delivery pressure at the battery limit
- Operating hours and load variation
- Site altitude and ambient conditions
- Available power, cooling and installation space
- Downstream process and control interfaces
BEFORE YOU SPECIFY
Common questions.
What oxygen purity can be specified?
VPSA commonly supplies oxygen in the 80–93% range. Final purity, flow and delivery pressure are defined together for the proposed system.
Is delivery pressure the same as adsorption pressure?
No. Adsorption pressure is an internal process condition. Oxygen delivery pressure is a separate requirement and may call for a downstream booster.
How should energy consumption be compared?
Use the same oxygen purity, delivery pressure, reference conditions and equipment boundary. Clarify whether the figure is per unit of product oxygen or pure oxygen equivalent.
